MTV-T461
CNC DELİK DELME VE KILAVUZ ÇEKME TEZGAHLARI

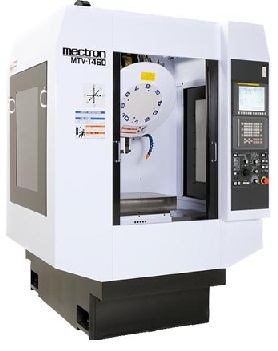

MTV-T461, Mectron tarafından üretilen dikey 3 eksenli bir CNC işleme merkezidir. Hassasiyeti, kompakt boyutu ve verimli doğrudan takım değiştirme özelliğiyle büyük beğeni toplamaktadır. Genellikle hassas frezeleme gerektiren takımhaneler ve üretim tesislerinde kullanılmaktadır.
| Slide Travel X,Y,Z-Axis | Std: 500x(420＋100)x350 mm Small: 360x(420＋100)x350 mm Large：700x(420＋100)x350 mm ※1 |
|---|---|
| Height of Spindle Nose from Table | 250~600mm |
| Table size (WxL) | Std：500x420 mm Small: 500x420 mm Large：700x420 mm ※1 |
| Tables Max.Load Capacity | 300kgs |
| Table Rotation (APC) & Rotation time | - |
| Max. Spindle Speed | 10,000 min-1 |
| Max. Speed Rigid Tapping | 5,000 min-1 |
| Rapid Traverse Rate X,Y,Z-Axis | 50,50,50 m/min |
| Shank of Tool Holders | BBT40+P40T-II |
| Tool Change System | Magazine direct system |
| No. of Tool Pot | 12(op 15)pcs |
| Max. Tool Diameter x Tool Length | φ80x250mm |
| Max. Tool weight (total) | 4.0 kgs |
| Tool Change Time Tool to Tool/Chip to Chip | 1.2/2.5 seconds |
| Max. Height of Machine | 2,575mm |
| Min. Height of Machine | 2,250mm |
| Size of Machine (Width, Depth) | Std: 1,500x2,255 mm Small: 1,250x2,255 mm Large: 1,850x2,255 mm ※1 |
| Machine weight | Std：2,800 kgs Small: 2,800 kgs Large：2,900 kgs ※1 |
| NC unit | FANUC 0i-MF Plus |
| Power-supply voltage | AC200V 3 Phase |
| Power capacity required | 17.3 KVA |
| Positioning accuracy/Repeated Positioning accuracy | 0.005/+-0.003 mm |
| Machining Capability Drilling/Tapping | ADC12 φ42F0.2/M39x2.0 mm FC250 φ38F0.15/M33x3.0 mm S45C φ32F0.15/M27x2.0 mm |
