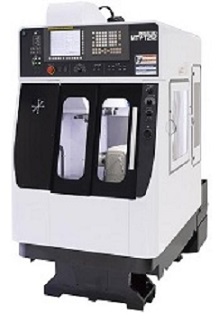

MECTRON MTV-T212
CNC DELİK DELME VE KILAVUZ ÇEKME TEZGAHI
Mectron MTV-T212, yüksek hassasiyetli işlemler için tasarlanmış kompakt, eş zamanlı 5 eksenli bir dikey işleme merkezidir . Küçük ve hassas parçaların (saat parçaları, tıbbi cihazlar vb.) üretiminde kullanılır. Termal genleşmeyi en aza indiren SX tipi bir gövde tasarımına sahiptir.
| Slide Travel XxYxZ-Axis | 250×250×250mm |
|---|---|
| Height of Spindle Nose from Table | 200-450mm |
| Table size (WxL) | 400×300mm |
| Tables Max.Load Capacity | 80kgs |
| Table exchange method / exchange time | - |
| Max. Spindle Speed | 30,000 min-1 |
| Rigid-Tap Speed | 8,000 min-1 |
| Rapid Traverse Rate X,Y,Z-Axis | 36,36,36 m/min |
| Shank of Tool Holders | HSK-E32 |
| Tool Change System | Double arm system |
| No. of Tool Pot | 30pcs |
| Max. Tool Diameter x Tool Length | φ30×100mm |
| Max. Tool weight (total) | 0.4kgs |
| Tool Change Time Tool to Tool/Chip to Chip | 1.0/2.8 seconds |
| Max. Height of Machine | 1,985mm |
| Min. Height | 1,985mm |
| Size of Machine (Width, Depth) | 1,085 × 1,845 mm |
| Machine weight | 2,800 kgs |
| NC unit | FANUC 0i-MF Plus FANUC 31i-B5 Plus |
| Power-supply voltage | AC200~230V 3 Phase |
| Power capacity required | 12.1 KVA |
| Positioning accuracy/Repeated Positioning accuracy | 0.005mm/+-0.002mm |
| Machining Capability Drilling/Tapping | ADC12 φ12F0.15/M12x1.75 mm FC250 φ10F0.1/M10x1.5 mm S45C φ10F0.1/M10x1.5 mm |
