MTV-T361
CNC DELİK DELME VE KILAVUZ ÇEKME TEZGAHI

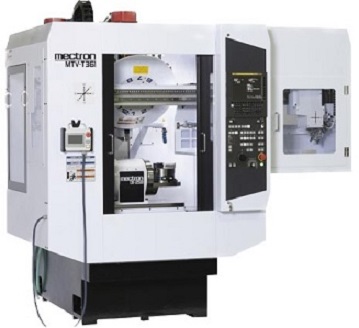

MTV-T361 , rijit yapısıyla küçük ve büyük iş parçalarını verimli şekilde işleyebilen, yüksek performanslı dikey bir kompakt işleme merkezidir (CNC). Mectron Inc. firmasının ürettiği bu makine, kompakt tasarımda geniş bir çalışma alanı sunmak üzere tasarlanmıştır.
| Slide Travel X,Y,Z-Axis | 500x(420+100)x300 mm Small: 360x(420+100)x300 mm Large: 700x(420+100)x300 mm *1 |
|---|---|
| Height of Spindle Nose from Table | 250~550mm |
| Table size (WxL) | 500x420 mm Large: 700x420 mm *1 |
| Tables Max.Load Capacity | 300kgs |
| Table Rotation (APC) & Rotation time | - |
| Max. Spindle Speed | 12,000 min-1 |
| Max. Speed Rigid Tapping | 5,000 min-1 |
| Rapid Traverse Rate X,Y,Z-Axis | 50, 50, 50 m/min |
| Shank of Tool Holders | BBT30+P30T-II |
| Tool Change System | Magazine direct system |
| No. of Tool Pot | 12 (op.15,20) pcs |
| Max. Tool Diameter x Tool Length | φ80x200mm |
| Max. Tool weight (total) | 2.5 kgs |
| Tool Change Time Tool to Tool/Chip to Chip | 1.0/2.3 seconds |
| Max. Height of Machine | 2,415mm |
| Min. Height of Machine | 2,205mm |
| Size of Machine (Width, Depth) | 1,500x2,255 mm Small: 1,250x2,255 mm Large: 1,850x2,255 mm *1 |
| Machine weight | 2,800 kgs Large：2,900 kgs ※1 |
| NC unit | FANUC 0i-MF Plus |
| Power-supply voltage | AC200V 3 Phase |
| Power capacity required | 17.3 KVA |
| Positioning accuracy/Repeated Positioning accuracy | 0.005/+-0.003 mm |
| Machining Capability Drilling/Tapping | ADC12 φ38F0.2/M30x3.5 mm FC250 φ34F0.2/M27x3.0 mm S45C φ28F0.15/M22x2.5 mm |
